Hybrid Line-to-Ground Lightning Protection Assembly

The Model SSS-HBD2 provides Line-to-Ground Lightning Protection on higher voltage power and signal line pairs with a Line-to-Line maximum voltage of 360VDC or 254VRMS (AC) [i.e. Line-to-Ground protection of High Voltage DC Switch Machine Power is one of many applications].

Downloadable and printable product page (PDF)

Highlights:

  • Components are mounted to a printed circuit board that is form and fit compatible with a standard lightning adapter
  • Dual High-Energy 20mm MOVs with High-Energy Gas Tube Arrester Protection
  • High-Energy Gas Tube provides air gap isolation
  • High-Energy MOVs eliminate any continuous follow through arcing of the Gas Arrester
  • All components are UL Listed
  • Robust and cost effective Line-to-Ground Protection solution for low voltage signal, power, and communication where lines must be isolated from ground or where continuous arcing of the arrester is a concern
  • Very cost-effective

Features:

  • Mounts on standard AAR terminal blocks (not supplied) with 2-3/8" center-to-center post dimensions (standard for lightning arresters) or any AAR terminal block strips that are positioned to accept a standard lightning arrester spacing
  • Incredibly High Residual Arc Voltage, 182 Volts minimum
  • Utilizes open slots at the ends of the circuit board for mounting flexibility and easy maintenance
  • All copper traces are on the underside of the board to prevent accidental shorting
  • Connection to the AAR Posts is on the underside of the circuit board
  • Used as Line-to-Ground protection on Line Pairs whose Line-to-Line Voltage does not exceed 360VDC or 254VRMS
  • Not for track-wire Line-to-Ground protection

Electrical & Temperature Specifications

  • Used as Line-to-Ground protection on Line Pairs whose Line-to-Line Voltage does not exceed 360VDC or 254VRMS
  • Maximum continuous applied DC voltage (across the device) = 180VDC
  • Maximum continuous applied AC voltage (across the device) = 127VRMS
  • DC Conduction Voltage @ 1mA (steady energy applied) = 298 to 400VDC
  • Peak Current Handling Capability = >15kA (8x20μS Waveform)
  • Energy Handling Capability = >150 Joules
  • Typical Capacitance = 1pF
  • Operating Temperature Range: -40 to +70°C
  • Typical firing voltage for a 1000V/μS transient ≈ 1100 Volts Peak
  • Residual Arc Voltage (across the device) = 182 Volts minimum
  • Insulation Resistance = >1000 MΩ
  • Surge Life = 1000 minimum @ 500A (10x1000μS)

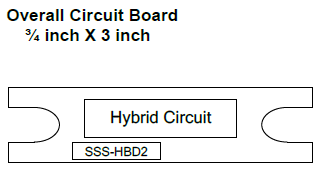

Dimensions:

Schematic:

Summary:

The Model SSS-HBD2 is mechanically the same as the Model SSS-HBD1. Electrically it has a higher conduction voltage for applications requiring Line-to-Ground protection on higher voltage DC circuits and control lines. The hybrid components are mounted on a printed circuit board that is form and fit compatible with a standard lightning arrester mounting (2-3/8" terminal spacing). This assembly uses a high current Gas Discharge Tube (GDT) wired in series with a parallel pair of high energy Metal Oxide Varistors. The GDT provides a true isolation barrier between the protected circuit lines and earth ground. The Varistors are in the circuit to extinguish any follow-through arcing that may occur when they are used to protect DC power, control lines, correspondence lines, signal lines, and any lines carrying DC power inside or outside the Signal House or Case.

When applying these arresters, be sure the Line-to-Line (differential) voltage of the wiring being protected does not exceed 360VDC or 254VRMS. One application would be for the protection of the DC power to high voltage Switch Machines operating between 110VDC and 130VDC. Another application is where high Line-to-Ground induction voltages are encountered.

Note:
These are not to be used as Line-to-Ground protection for wires connected directly to the rails.
